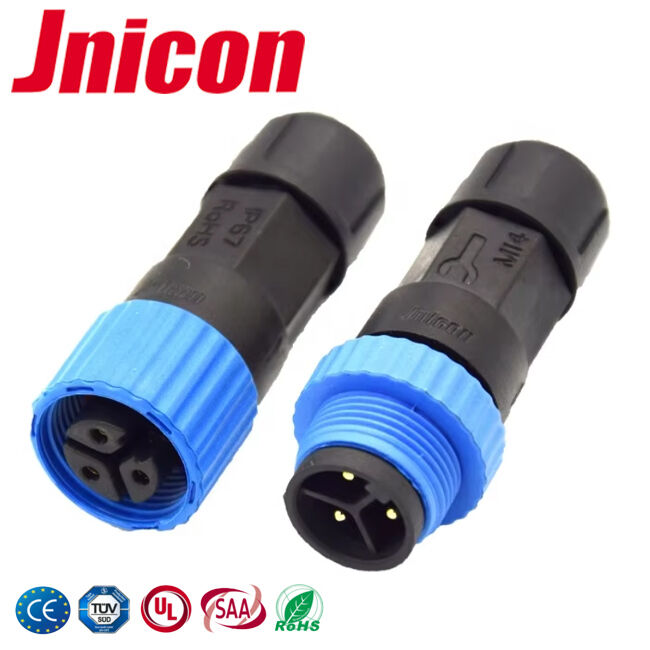

Name: M15 3 Pin Plastic Circular Connector 10A 300V Low Voltage LED Connectors For Outdoor Electronics
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M15
Price: 2.20 USD
Availability: InStock

Nhà Sản phẩm Kết nối cắm chống nước

M15 3 Pin Plastic Circular Connector 10A 300V Low Voltage LED Connectors For Outdoor Electronics

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	Jnicon
Chứng nhận:	UL,TUV,CE,ROHS,CQC
Số mô hình:	M15

Thanh toán:

Số lượng đặt hàng tối thiểu:	100 (10 cặp mẫu)
Giá bán:	negotiable
chi tiết đóng gói:	1. Túi nhựa; 2. Thùng carton; 3. Theo yêu cầu của khách hàng
Thời gian giao hàng:	3-5 ngày làm việc
Khả năng cung cấp:	10000 chiếc / ngày

Tiếp xúc

Chi tiết sản phẩm

Xếp hạng hiện tại:	10 Ampe	Vật liệu:	PA66,UL94-V0
Bảo hành:	5 năm	Điện trở tiếp xúc:	<5mΩ
Màu sắc:	Xanh và đen	Phạm vi cáp:	0,3-1,5mm2
Làm nổi bật:	M15 3 pin circular connector , low voltage LED connector , waterproof plug connector 10A

M15 Field Assembly 3Pin Male Female connectors For Street lightings

Connnector features:

1. Quick lock waterproof connector

2. IP67 protection level

3. Could be field assembly to your applications

4. Multicolor available, such as Blue,black

5. Rated current :10A

M15 Field Assembly 3Pin Male Female connectors is popular to LED driver using, no long need to worry about how to connector the cable carried on the LED driver, you need only this Field assembly male female connector to solve it.

Technical information :

Connector color:	Black, blue
Waterproof level:	IP67/IP68
Cable specification:	0.3-1.5mm2
Cable diameter range:	4.5mm-11mm
Rated current (A):	10A
Operating voltage (AC.V.rms):	300V

Connector's reliability :

Contact resistance:	<5mΩ
Insulation resistance:	>500MΩ
Durability:	≥3000 mating and unmating cycles
Temperature rating:	-40°C~105°C
Connecting mode:	Solder type/screw terminal
Flame-resistance:	UL94-V0

High quality material:

Sealed against dust and fluid (IP67&IP68)

Vibration resistance, impact resistance, stretching resistance

Dust cover available

RFQ

Q: hello, i do not know what's kind of connector i need, but i need it for led connection.

A: hello my friend, we are pleased to provide complete solution for you if more details could be provided such as: current(amp), voltage, wire number, cable size etc.

Q: How can I get samples?

A: It's my honor to offer you samples, we could offer 3pcs each item for free charge but cost of freight would be on your side. If need more items, more quantity for each item, we will charge for the samples.

Q: How many materials you can provide?

A: Connectors and cable are made by different material. Usually connector ia made by PVC/Nylon and cable is made by PVC/Rubber/PU/Silicone . Meanwhile, OEM/ODM both accepted .
