Name: Quick Lock M19 20A Electrical Cable Connectors IP67 Circular Connector
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

Nhà Sản phẩm Đầu nối dây chống nước

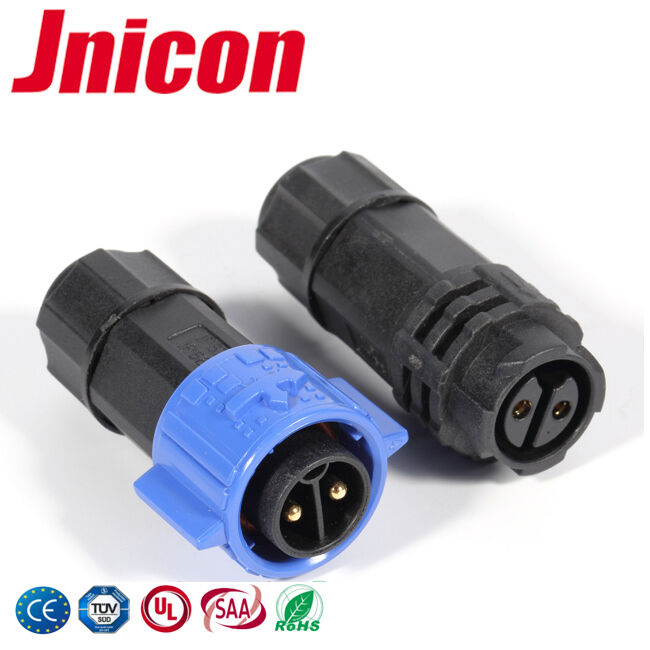

Quick Lock M19 20A Electrical Cable Connectors IP67 Circular Connector

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	Jnicon
Chứng nhận:	CE,TUV,UL,RoHS
Số mô hình:	M19

Thanh toán:

Số lượng đặt hàng tối thiểu:	100 (10 cặp mẫu)
Giá bán:	negotiable
chi tiết đóng gói:	thùng carton xuất khẩu chất lượng cao
Thời gian giao hàng:	3-6 ngày làm việc
Điều khoản thanh toán:	T / T, Paypal, L / C, Western Union
Khả năng cung cấp:	10000/ngày

Tiếp xúc

Chi tiết sản phẩm

Tên sản phẩm:	Đầu nối nhanh nam nữ M19	Cấp IP:	IP67
Đánh giá hiện tại:	20A	Thông số cáp:	18AWG-12AWG
Bảo hành:	5 năm	Đánh giá khả năng kháng Fkame:	UL94-V0
Làm nổi bật:	M19 waterproof cable connector , 20A electrical circular connector , IP67 quick lock wire connector

2P Waterproof Plug In Screw Terminal Blocks Connector ,M19 Plastic Connector

Product Features

1. 20Amps power connector

2. Push locking connection

3. Connection method: soldering(welding),screw terminal

4. Assembly: cable to cable /wire to wire,panel mount,male and female without cable,T shape.

5. Certification: UL,TUV,RoHS,CQC,CE

6. Golded plated

Connector Technical Spec

Number of contacts	2	3	4	5	6	7	8	9-28
Rated current/voltage	20A	20A	15A	15A	10A	10A	10A	5A
Rated voltage	300V	300V	300V	300V	300V	125V	125V	60V
Cable gauge	Max2.5mm²(12AWG)
Cable diameter	∅12mm
Protection level	IP67
Operating temperature	-45℃-105℃
Connecting mode	Self-lock Assembly type
Flammability	UL94-V0
Certification	CE, TUV, UL, RoHs, CQC

Main characteristics:

Sealed against dust and fluid (IP67/IP68)

Vibration resistance, impact resistance, stretching resistance

Dust cover available

Product Application

1. Great suitable for Outdoor LED light, LED equipment, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.

2. Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.

3. With environmental protection material:high performance engineer plastic is good for environmental protection.

4. Screw terminal connector could be field installed, just need to screw the wire on it and tighted it, fast and easy. Quick Lock M19 20A Electrical Cable Connectors IP67 Circular Connector 0
