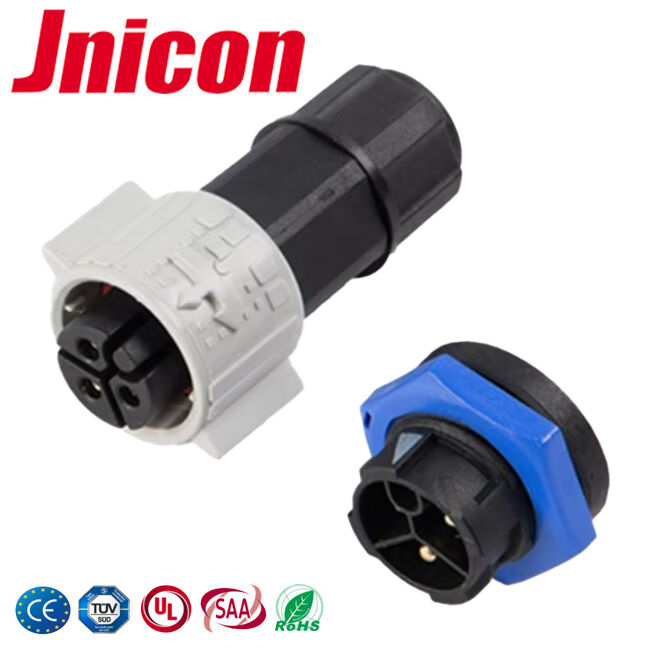

Name: M19 IP67 Rated Waterproof Plug Socket 20A Power Connector for Outdoor LED Equipment
Brand: Shenzhen Jnicon Technology Co., Ltd.
SKU: M19
Price: 2.20 USD
Availability: InStock

Nhà Sản phẩm Ổ cắm chống nước

M19 IP67 Rated Waterproof Plug Socket 20A Power Connector for Outdoor LED Equipment

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	Jnicon
Chứng nhận:	CE,TUV,UL,RoHS
Số mô hình:	M19

Thanh toán:

Số lượng đặt hàng tối thiểu:	100 (10 cặp mẫu)
Giá bán:	negotiable
chi tiết đóng gói:	thùng carton xuất khẩu chất lượng cao
Thời gian giao hàng:	3-6 ngày làm việc
Điều khoản thanh toán:	T / T, Paypal, L / C, Western Union
Khả năng cung cấp:	10000/ngày

Tiếp xúc

Chi tiết sản phẩm

Tên sản phẩm:	Đầu nối chống nước cường độ cao M19 20A	Phương thức kết nối:	Khóa đẩy, khóa vít
Cấp IP:	IP67	Điện áp định mức:	Tối đa 500V
Đường kính cáp:	Tối đa 12mm	Thông số cáp:	18AWG-12AWG
Làm nổi bật:	M19 waterproof plug socket 20A , IP67 rated power connector outdoor , waterproof plug socket LED equipment

Plastic Outdoor Waterproof Plug Connector With Male Female , IP67 20A Power Plug

Product Features

1. 20Amps power connector

2. Multicore: 2,3,4,5,6,7,8,9 to 36 pins are optional

3. Connection method: soldering(welding),screw terminal

4. Assembly: cable to cable /wire to wire,panel mount,male and female without cable,T shape.

5. Certification: UL,TUV,RoHS,CQC,CE

M19 Connector Technical Specification

Number of contacts	2	3	4	5	6	7	8	9-28
Rated current/voltage	20A	20A	15A	15A	10A	10A	10A	5A
Rated voltage	300V	300V	300V	300V	300V	125V	125V	60V
Cable gauge	Max2.5mm²(12AWG)
Cable diameter	∅12mm
Protection level	IP67
Operating temperature	-45℃-105℃
Connecting mode	Self-lock Assembly type
Flammability	UL94-V0
Certification	CE, TUV, UL, RoHs, CQC

Product Application

1. Great suitable for Outdoor LED light, LED equipment, Telecommunication, Marin, grating, external wiring, CCTV, factory automation control, wireless bridge and other places need waterproof power extension use.

2.Easy connection, convenient install, DIY tools, and no need to pinch-off cable electrical plastic sets, just unscrew the ends of waterproof connector, connect the wire correctly: N for Neutral wire, G for Ground wire, L for live wire.

3.With environmental protection material:high performance engineer plastic is good for environmental protection.

M19 IP67 Rated Waterproof Plug Socket 20A Power Connector for Outdoor LED Equipment 0
